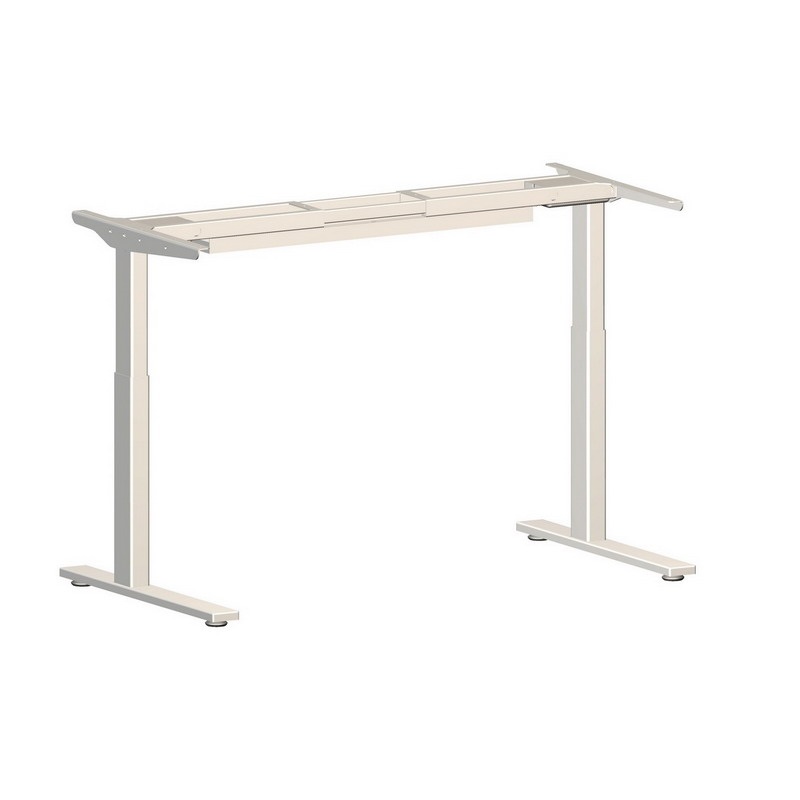

BGLD-11F is an innovative electric lift table frame suitable for office, home and business environments.Minimalist aesthetics, meticulous design, innovative shapes to match different application scenarios, simple lifting system structure, embedded hand controller to easily control the lifting; four legs are synchronized and stable, equipped with resistance to return function, safe lifting.

Parameters

Product Type: SDF-11

Function: Electric Adjustable Desk Frame with an eco-friendly and whole laminate top.

Description: Electric Sit Stand Desk Frame with high-quality Ergonomic HPL Top.

Product Detail

This Electric Height Adjustable Standing Desk Frame has the features below:

● Super Silence: Quiet operation, for a more comfortable work environment.

● Long Life: Based on precise worm gear and worm shaft design and powerful mute motor, our desks have passed 30,000 cycles in the endurance test with 95kg loaded.

● Strong Capacity: Electric adjustable desk base can lift Maximum 265 lb. very steady.

● Very Steady: No problem sitting on it by balance precise smart control.

● Precise control: Every MM of moving is very accurate and smooth.

● Duty Cycle: 50% Max. 1minutes on / 1minutes off.

● Anti-Collision and Height Memory: More safety and convenient with soft start / stop.

● Certificates: CE, ROSH, UL, FCC, CNAS, BIFMA, etc.

● Material: Well design and constructed.

● Optional: Cable tray, Power outlet, Wireless charging, USB interface, etc.

Specification:

Column Stage	2	Motor Number	2
Column Topology	Upright	Height Adjustable Range	700-1200mm
Frame Adjustable Range	1072-1870mm	Stroke	500mm
Speed	30 mm/s	Noise	≤43 dBA
Max. Load	160KG	Use Environment	－30℃~＋50℃
Colour	Black/White/Silver Gray	Handset	4 memory button

Application:

● Office Furniture: electric standing desk base;

● Home Furniture: electric standing desk frame;

● Living Furniture: electric stand up desk frame;

Our Services:

Assembly Instruction and Operating Instruction

Online Guide

Warranty: Warranted against manufacturing defects for 5 years.

Quickly response

More safe and fast transport

OEM design for all customers

FAQ

Q: May I have new sample made with my design for confirmation?

A: Yes. Sample charge means set up charge for production line, little quantity we suggest that straight for production. Large quantity we suggest that sample first, and sample fee can be refunded.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
